Specification of Feeder Cables

Technical Information





ENTERTAINMENT CABLE
TYPE SC  -  STAGE & LIGHTING CABLE · 600 VOLTS · 105oC  ·  ­35oC


sc-cable-ULCSA.gif - 2016 Bytes





FEATURES

  • UL listed Type SC per NEC Article 520 and 530, indoor and outdoor locations
  • Meets VW-1, MSHA and IEEE 383 flame tests
  • Excellent flexibility
  • Excellent resistance to oil, solvents, ozone, aging and abrasion
  • Suitable for continuous submersion in water





sc-cable.gif - 14822 Bytes

PART
NUMBER

AWG
SIZE

STRANDING

NOMINAL
O.D.

AMPS1

SHIP WT.
LBS./M FT.

DCA30353
DCA30167
DCA30126
DCA30058

DCA30127
DCA29721
DCA29393

8
6
4
2

1/0
2/0
4/0

164x30
259x30
413x30
651x30

1050x30
1308x30
2090x30

.335
.390
.450
.515

.650
.655
.795

80
105
140
190

260
300
405

150
210
290
393

595
696
1032

90oC Rated Green CPE insulation (UL only)

DCA35372

6

266x30

.365

105

163

1Based on 30oC ambient temperature in air, 90oC conductor temperature per Table 400-5 (B) of the 1996 NEC

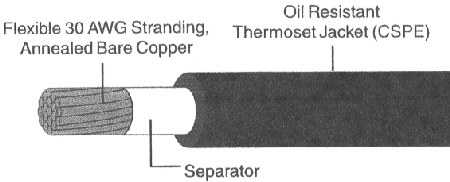

CONSTRUCTION

Flexible stranding (30 AWG) annealed bare copper, separator, oil resistant thermoset jacket (black).

Cable identification
Indent print on cable surface:"(size) AWG Type SC; 105oC, 600V, Oil Res. 60oC Water Resistant, Max. Amps, NEC Table 400-5(B) for 90oC (UL)---A.I.W. Corp.--CSA -50oC Type PPC Stage Lighting Cable 90oC FT5"

APPLICATIONS

Portable power and lighting applications in the entertainment industry including motion picture, television, theatres, stage and similar locations.









AMERICAN MUSTANG® TYPE W   PORTABLE POWER CABLE
8 AWG - 500 MCM · 600/2000 V · 90o0 WET OR DRY


typew-cableUL.gif - 1652 Bytes





FEATURES

  • UL listed (file E83541) on all stock items
  • OSHA acceptable
  • Excellent Flexibility
  • Passes MSHA flame test (P-136-MSHA)
  • Excellent resistance to oils, solvents, ozone, aging, and abrasion
  • Suitable for continuous submersion in water

APPLICATIONS

Portable power and lighting in industrial, mining and entertainment applications.

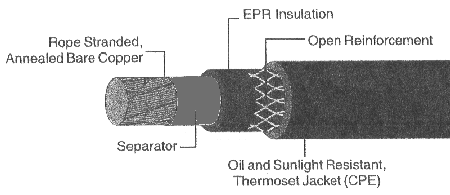

CONSTRUCTION

Conductors
Rope stranded, annealed bare copper conforming to ICEA S-75-381 Part 2 and UL requirements. A suitable separator is used over the conductor.

Insulation
Ethylene propylene rubber conforming to ICEA 5-75-381 Part 3 and UL requirements for oil (60oC) and water resistance (90oC).



typew-cable.gif - 13802 Bytes

PART
NUMBER

SIZE AWG
OR MCM

STRANDING

NOMINALS (INCHES)

INS.

JACKET

O.D.

AMPS1

SHIP WT.
LBS./M FT.

DCA31694
DCA31695
DCA31696
DCA28883

DCA31697
DCA28882
DCA28881

DCA31698
DCA31699
DCA31700

8
6
4
2

1/0
2/0
4/0

250
350
500

168x30
266x30
420x30
651x30

1064x30
1311x30
2090x30

629x.0201
888x.0201
1221x.0201

.060
.060
.060
.060

.080
.080
.080

.095
.095
.095

.075
.095
.095
.095

.095
.095
.095

.095
.095
.095

.440
.535
.600
.630

.875
.815
.940

1.080
1.200
1.340

80
105
140
190

260
300
405

455
570
700

155
267
369
458

658
730
1049

1425
1971
2651

1Based on 30oC ambient temperature in air, 90oC conductor temperature per Table 400-5 (B) of the 1996 NEC

NOTES: Type W can be manufactured to CSA requirements; consult factory.

Reinforcement: A suitable yarn.

Jacket:  Black, heavy duty, extra hard usage thermoset chlorinated polyethylene conforming to ICEA S-75-381 Part 3 and UL requirements for oil and sunlight resistance.

Cable identification Indent print on jacket:
"American Mustang (size) 1/C Type W Portable Power Cable 90oC wet or dry, 2000 Volts Oil and Sun Res. A.l.W. Corp. (UL) P-136-35"



NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
